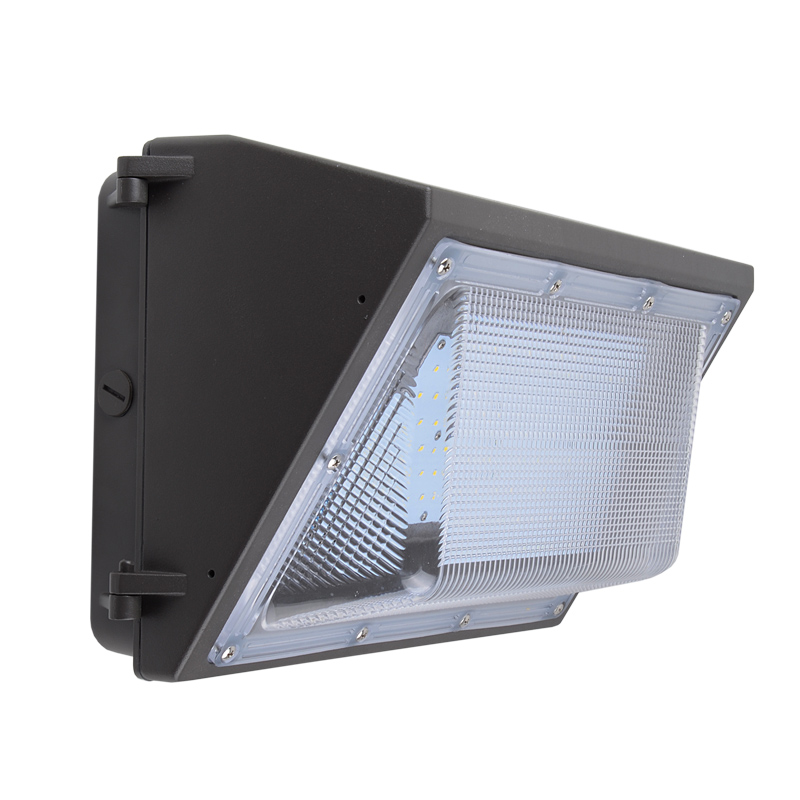

75W Semi Cut-off LED Wall Pack Lights,,9000 Lumens,IP65 waterproof
  • 75W Semi Cut-off LED Wall Pack Lights,,9000 Lumens,IP65 waterproof
  • 75W Semi Cut-off LED Wall Pack Lights,,9000 Lumens,IP65 waterproof
  • 75W Semi Cut-off LED Wall Pack Lights,,9000 Lumens,IP65 waterproof
75W Semi Cut-off LED Wall Pack Lights,,9000 Lumens,IP65 waterproof75W Semi Cut-off LED Wall Pack Lights,,9000 Lumens,IP65 waterproof75W Semi Cut-off LED Wall Pack Lights,,9000 Lumens,IP65 waterproof

75W Semi Cut-off LED Wall Pack Lights,,9000 Lumens,IP65 waterproof

1.wattage: 75W

2.IP Rating: IP65

3.input voltage: 100-277VAC

4.Light Source: Philips 3030

5.Luminous Flux: 9,000 Lumens

6.Expected lifespan: >54,000 hours @L80

7.CCT: 3000K/4000K/5000K/5700K/6500K

8.Dricer typeL: UL Approved

9.Certficates: DLC,ETL,cETL,TUV,SAA,RCM,CB,LCP,ROHS

Inquire Now Next Product

75W Semi Cut-off LED Wall Pack Lights,,9000 Lumens,IP65 waterproof

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet，Please make sure that your email address is absolutely correct！

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview


Specifications

ModelLSFWP-75W
Wattage75W
Luminous Flux

4000K : 8,700 Lumen

4500K : 8,800 Lumen

5000K : 8,900 Lumen

5700K : 9,000 Lumen

Driver PowerUL Approved
Light SourcePhilips SMD 3030
Dimension361*235*187mm
CCT3000K 4000K 5000K 5700K 6500K
Input Voltage100-277VAC and 347-480VAC
Power Factor>0.95
ConstructionHigh pressure die-casting aluminum external
Installation MethodWall installation
CRI>80
Working Tempe / Humidity-45 to + 50 Deg C / @Ta=25 Deg C
Warranty5 year Warranty
Rated Lifespan50,000+hours
IP RatingIP65
Equivalent300W metal halide / HID wall pack Equivalent
CertifiedETL,cETL,TUV,CE,ROHS,SAA,FCC,PLC,DLC,Ctick certified


75W LED Semi cutoff Wall pack Lights

75W Semi cut-off LED wall pack lights

Size

75W Semi cut-off LED wall pack light size.jpg

Product Range

semi cut-off LED wall pack light product range.jpg


Main Feature

1.5 years warranty

2.Original Philips SMD 3030 which up to 110Lm/W to 120Lm/W

3.With the best quality UL driver.

4.They are assembled by module light weight aluminum fin.

5.IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion.

6.Using aluminum fin heat sink which heat transfer faster than die cast.

7.Tiny package and lighter,lower freight cost,more competitive in the market.

8Avaialble for warehouse,tunnel lighting,advertisement ,gas station and factory lighting etc.


CCT

3000K/4000K/4500K/5000K/5700K/6500K

LED light Color temperature diagram.jpg


Application

AvaiaBle for warehouse,tunnel lighting,advertisement,gas station and factory lighting etc.


LED wall pack light case.jpg

Package Details

75W: 1pcs/carton size: 41*31*27cm

GW: 4.9Kg
