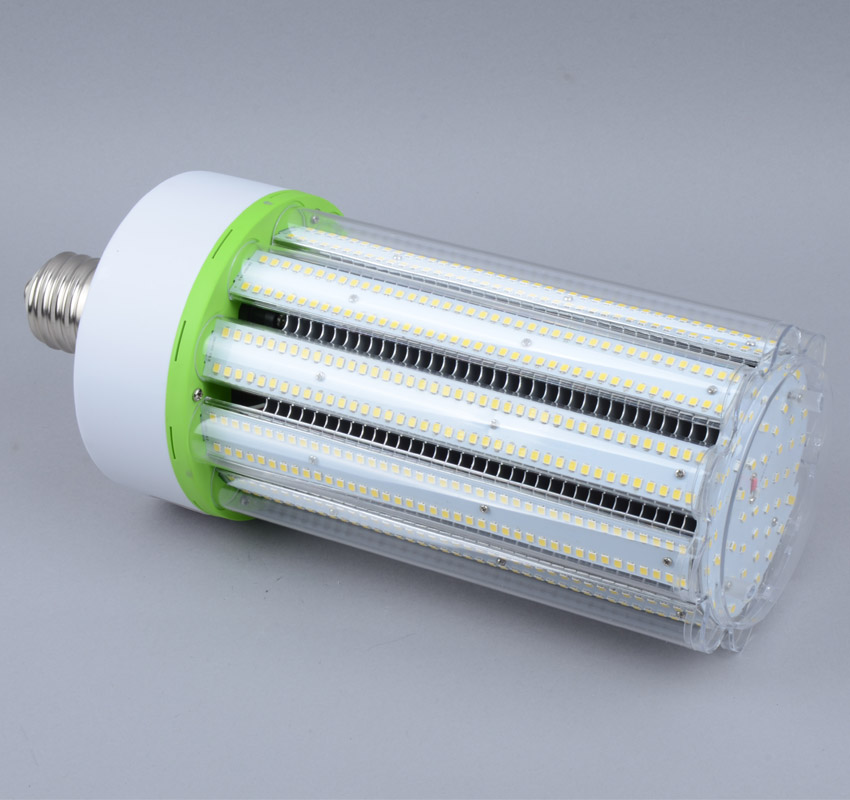

120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID
  • 120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID
  • 120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID
  • 120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID
  • 120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID
  • 120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID
  • 120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID
  • 120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID
  • 120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID
120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID

120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID

  • Model NO. : LSCB-120WXY-D

  • Wattage: 120 Watt

  • Input Voltage: 100-277VAC

  • Dimmable:1-10VDC / PWM signal / Resistance

  • Luminous Flux: 15600 Lumen

  • Base: E40/E39(mogul) E27/E26(Medium)

  • CCT: 3000K 4000K 5000K 5700K 6500K

  • Milky cover,clear cover and NO cover options.

  • CE RoHS Certificate.

  • Equal 450W Metal Halide / HPS / HID Lamp.

Inquire Now Next Product

120W Dimmable LED Corn Bulbs 15600Lm Equal 450W HID

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview


Size


120W led corn light size.jpg

led corn bulb CE RoHS certification

Specifications

ModelLSCB-120WXY-D
Dimmable1-10VDC / PWM signal / Resistance
Wattage120W
Luminous Flux15600 Lm
Dimensions

(No cover) E40:Dia128*287mm  E27:Dia128*280mm

(with cover)E40:Dia128*300mm  E27:Dia128*292mm

Replaces450W HID
CCT3000K 4000K 5000K 5700K 6500K
Input Voltage100-300VAC,50/60Hz
Power Factor>0.8
Cap TypeE40/E39 (mogul) E27/E26(Medium)
CoverMilky cover,clear cover and NO cover options
Light Source2835 Epistar SMD
Beam Angle360 degrees
IP Rating60
CRI>80
Body Temperature<50 Deg C  @Ta=25 Deg C
Ambient temperature-45 to + 50 Deg C
Rated Lifespan50,000+ hours
CertifiedCE RoHS Listed

Feature

  • Using high brightness of original packed Epistar 2835 SMD chip which.

  • As the world's first new products ,LED corn bulb could replace the conventional compact CFL light directly .

  • Unique construction design easier for power supply and light source replacement if needed,with full beam angle (360 degrees).

  • Fin aluminum heat dissipation system(PATENT design).The fan of active air exchanging cooling system in order to speed up heat dissipation.

  • No spot, no black area, long life span and less brightness decay

  • Various lamp bases are available , a wide range of applications.(E39/E40 mogul, E26/E27 medium)

  • Wide voltage AC100-300V,High efficiency constant current drives,Efficiency of power supply is more than 90%.

  • No magnetic disturbance influence and CE & RoHS standard compliant.

  • Dimmable 1-10VDC / PWM signal / Resistance.

  • CE RoHS certified.

  • 60 months warranty


Advantages

led replace hps.jpg

  led corn bulb used Aluminum fin bulit-in heat sink    led corn bulb Customer Review

Application

led corn light application

Replacement LED

CFL Replacement - Just plug in,run at 100~240VAC

led corn light CFL_ Replacement.jpg

HPS Replacement - Basllast or transformer should be bypassed before installation

led corn light HPS_ Replacement.jpg

Beam angle

led corn light Beam Angle 360 degree

 E39 to E26 Adaptor E26 to E39 adaptor Dimmer 1-10VDC

E39 to E26 Adaptor

E40 to E27 Adaptor

E26 to E39 adaptor

E27 to E40 adapto

traditional dimmer can be used

(1-10VDC/PWM signal/Resistance)

 lengthwidthheightGW(kg)
Inner Box (1pc)15cm15cm36cm
Outer Carton (50pcs)64cm49cm40cm14.5


120W led corn light free brand
