60W Dimmable LED Corn Bulbs 7800Lm Equal 250W HID
  • 60W Dimmable LED Corn Bulbs 7800Lm Equal 250W HID
  • 60W Dimmable LED Corn Bulbs 7800Lm Equal 250W HID
  • 60W Dimmable LED Corn Bulbs 7800Lm Equal 250W HID
  • 60W Dimmable LED Corn Bulbs 7800Lm Equal 250W HID
  • 60W Dimmable LED Corn Bulbs 7800Lm Equal 250W HID
  • 60W Dimmable LED Corn Bulbs 7800Lm Equal 250W HID
60W Dimmable LED Corn Bulbs 7800Lm Equal 250W HID 60W Dimmable LED Corn Bulbs 7800Lm Equal 250W HID 60W Dimmable LED Corn Bulbs 7800Lm Equal 250W HID 60W Dimmable LED Corn Bulbs 7800Lm Equal 250W HID 60W Dimmable LED Corn Bulbs 7800Lm Equal 250W HID 60W Dimmable LED Corn Bulbs 7800Lm Equal 250W HID

60W Dimmable LED Corn Bulbs 7800Lm Equal 250W HID

  • Model NO. : LSCB-60WXY-D

  • Wattage: 60 Watt

  • Input Voltage: 100-277VAC

  • Dimmable:1-10VDC / PWM signal / Resistance

  • Luminous Flux: 7800 Lumen

  • Base: E40/E39(mogul) E27/E26(Medium)

  • CCT: 3000K 4000K 5000K 5700K 6500K

  • Milky cover,clear cover and NO cover options.

  • CE RoHS Certificate.

  • Equal 250W Metal Halide / HPS / HID Lamp.

  • Data Sheets
  • Features/Benefits
  • Options/Accessories
  • Lighing Layout

Feature

  • Using high brightness of original packed Epistar 2835 SMD chip which.

  • As the world's first new products ,LED corn bulb could replace the conventional compact CFL light directly .

  • Unique construction design easier for power supply and light source replacement if needed,with full beam angle (360 degrees).

  • Fin aluminum heat dissipation system(PATENT design).The fan of active air exchanging cooling system in order to speed up heat dissipation.

  • No spot, no black area, long life span and less brightness decay

  • Various lamp bases are available , a wide range of applications.(E39/E40 mogul, E26/E27 medium)

  • Wide voltage AC100-300V,High efficiency constant current drives,Efficiency of power supply is more than 90%.

  • No magnetic disturbance influence and CE & RoHS standard compliant.

  • Dimmable 1-10VDC / PWM signal / Resistance.

  • CE RoHS certified.

  • 60 months warranty

CE RoHS.jpg


Specifications - 60W LED Corn Bulbs

ModelLSCB-60WXY-D
Dimmable1-10VDC / PWM signal / Resistance
Wattage60W
Luminous Flux7800 Lm
Dimensions

(No cover) E40:Dia105*255mm           E27:Dia105*247mm

(with cover)E40:Dia105*267mm          E27:Dia105*258mm

Replaces250W HID
CCT3000K 4000K 5000K 5700K 6500K
Input Voltage100-300VAC,50/60Hz
Power Factor>0.8
Cap TypeE40/E39 (mogul) E27/E26(Medium)
CoverMilky cover,clear cover and NO cover options
Light Source2835 Epistar SMD
Beam Angle360 degrees
IP Rating60
CRI>80
Body Temperature<50 Deg C  @Ta=25 Deg C
Ambient temperature-45 to + 50 Deg C
Rated Lifespan50,000+ hours
CertifiedCE RoHS Listed

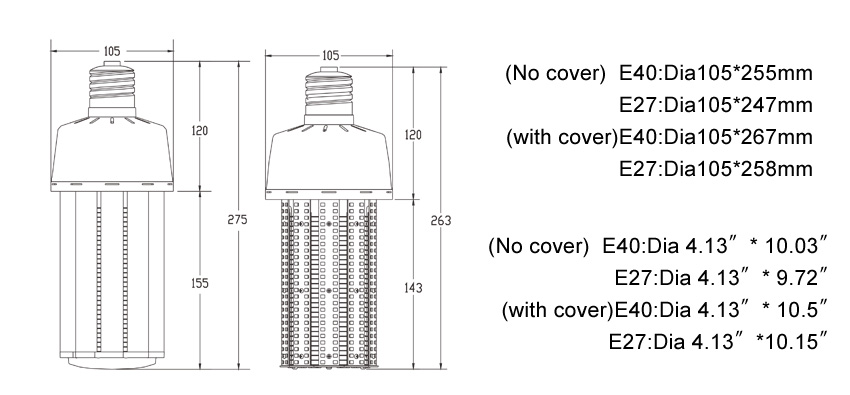

Dimensions


led corn light bulbs 60w dimensions.jpg


Advantages

led replace hps.jpg

led corn light Beam Angle 360 degree  led corn light aluminum fin bulit-in heat sink    Customer Review.jpg

Application

led corn light application

Replacement LED

CFL Replacement - Just plug in,run at 100~240VAC

led corn light CFL_ Replacement.jpg

HPS Replacement - Basllast or transformer should be bypassed before installation

led corn light HPS_ Replacement.jpg

 E39 to E26 Adaptor E26 to E39 adaptor Dimmer 1-10VDC

E39 to E26 Adaptor

E40 to E27 Adaptor

E26 to E39 adaptor

E27 to E40 adapto

traditional dimmer can be used

(1-10VDC/PWM signal/Resistance)

 lengthwidthheightGW(kg)
Inner Box (1pc)9cm9cm25cm
Outer Carton (50pcs)42cm54cm42cm18.5
