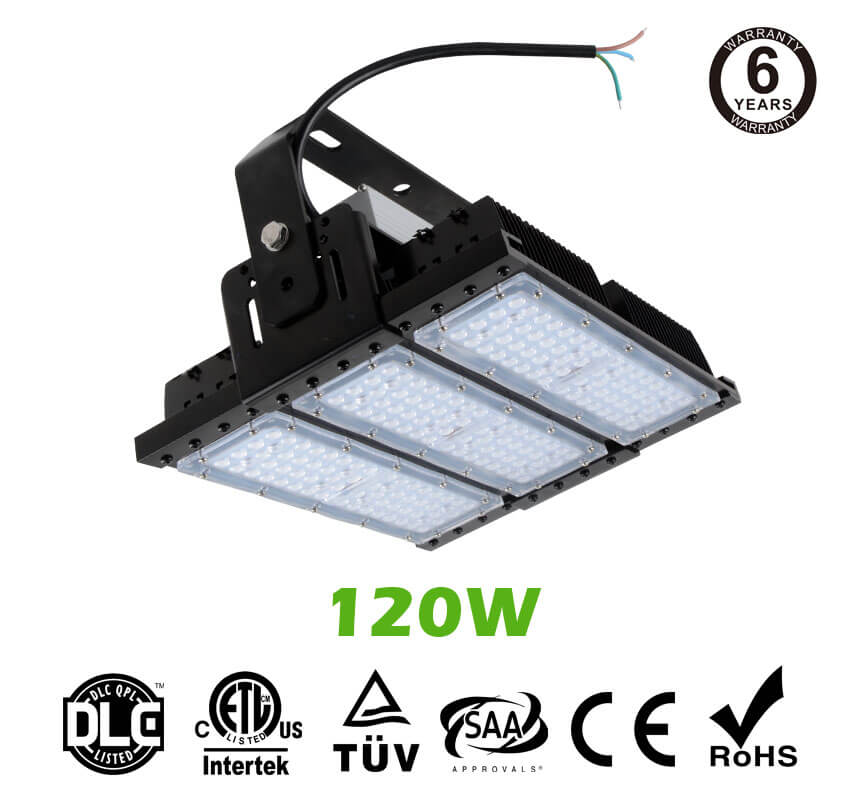

120W LED Flat High Bay Light 16000 Lumen Equivalent 300W HID/Metal Halide Light
  • 120W LED Flat High Bay Light 16000 Lumen Equivalent 300W HID/Metal Halide Light
  • 120W LED Flat High Bay Light 16000 Lumen Equivalent 300W HID/Metal Halide Light
  • 120W LED Flat High Bay Light 16000 Lumen Equivalent 300W HID/Metal Halide Light
  • 120W LED Flat High Bay Light 16000 Lumen Equivalent 300W HID/Metal Halide Light
  • 120W LED Flat High Bay Light 16000 Lumen Equivalent 300W HID/Metal Halide Light
120W LED Flat High Bay Light 16000 Lumen Equivalent 300W HID/Metal Halide Light120W LED Flat High Bay Light 16000 Lumen Equivalent 300W HID/Metal Halide Light120W LED Flat High Bay Light 16000 Lumen Equivalent 300W HID/Metal Halide Light120W LED Flat High Bay Light 16000 Lumen Equivalent 300W HID/Metal Halide Light120W LED Flat High Bay Light 16000 Lumen Equivalent 300W HID/Metal Halide Light

120W LED Flat High Bay Light 16000 Lumen Equivalent 300W HID/Metal Halide Light

  • Light Source: Philips 3030

  • Luminous Flux: 16,000 Lumen

  • Rated Wattage: 120 Watt

  • Base Options:US,Europe,UK,Australia plug

  • Input Voltage: 100-277VAC, 180-480VAC

  • Beam Angle: 45 / 90 / 120 / 160 degrees

  • IP Rating: IP65

  • Lifetime: 50,000+ hours

  • 300W HID/Metal Halide Equivalent.

  • Aluminum fin heat sink+stainless steel

  • ETL TUV SAA C-tick LCP RoHS listed

Inquire Now Next Product

120W LED Flat High Bay Light 16000 Lumen Equivalent 300W HID/Metal Halide Light

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet，Please make sure that your email address is absolutely correct！

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview


Specifications

ModelLSLBL-120WXY
Wattage120W
Luminous Flux16000 Lm
Light SourceSMD 3030 Philips
LED QTY180pcs
Driver PowerMeanwell Driver HLG-120H-36A
Dimension330*258*201mm(11.93'*10.16'*7.91')
Equivalent 300W metal halide / HID lamp Equivalent
CCT3000K/4000-4500K/5000-5700K/6000-6500K
Input Voltage100-300VAC,347-480VAC 50/60Hz
Power Factor>0.95
Cap TypeBase Options:US,Europe,UK,Australia plug
optical lens45 degree, 90 degree,120 degree
ConstructionBase Options:US,Europe,UK,Australia plug
Beam Angle45,  90 and 120 degrees Optional
IP RatingIP65
CRI>80
Efficacy (lm/W)133
Working Tempe / Humidity-45 to + 50 Deg C / @Ta=25 Deg C
Warranty6 year Warranty
Rated Lifespan50,000+ hours
Certified                ETL cETL TUV CE RoHS SAA FCC PLC DLC Ctick certified


Size

 120w led low bay luminaire size

Main Feature

  • 3030 SMD LEDS with high efficacy up to 133 Lm/W.

  • With most suitable beam angle 45, 90 and 120 degrees.

  • Integrated dimming by PWM, Resistance or 0-10V standard.

  • Unique appearance with innovative modular fin heatsink design.

  • Resistant to impact and seismic activities.

  • Instant on and off without delay or re-strike.

  • Industrial die cast anodized aluminum fixture housing.

  • Excellent resistance to corrosion, UV degredation and abrasion.

  • Short circuit, over current, over voltage, over temp protection.

  • IP65 rated for indoor or outdoor applications

  • 6 year system warranty

  • Certifications ETL TUV SAA C-tick LCP RoHS listed

  • Single and Double Hang Ring Pendant Mount and Plate Mount for easy installation


Main Construction Features

led low bay lights detailled low bay lights detail 2led low bay lights detail 3


Installation Methods

led low bay luminaire install  led low bay installation


Installation Height

LED Flat High Bay Light Installation height


Applications

  • Warehouse LED Lighting

  • Tunnel LED Lighting

  • High Mast Lighting

  • High-Bay Lighting

  • Factory Lighting

  • Low Bay Lighting

dlc led low bay luminaire


Cases show

Racecourse Lighting


Accessories

LED Flat low High Bay Light Accessories


Single and Double Hang Ring Pendant Mount and Plate Mount

led low bay installation

Accessoriess

LED Flat High Bay Light accessoriess

120w led flat bay luminaire Package

Packaging

L*W*H38*26*20cm
Gross Weight2.85kg
Package qty1pc/CTN


Outter Carton:


L*W*H79*40*40cm
Gross Weight21.3kg
Package qty6pcs/CTN
