120w LED Street Light 130lmW, meanwell driver Outdoor energy saving LED Lighting

1. 120 Watt;

2. 15600 Lm(130Lm/W)/ 18000 Lm(150Lm/W);

3. Replaceable 300-400W HPS, MH, HQI;

4. DLC ETL ENEC SAA CB TUV CE RoHS LM79 LM80 Spray Test ISTMT TM21 certification;

5Pluto LED street light use tempered glass and lens In order to prevent the lens turning into yellow;

6. The dust will be washed away automatically by the wind and rain with the unique circular arc design and smooth surface,which is good for the lamp fixture heat dissipation when all the dust is gone away;


Inquire Now Next Product

120w LED Street Light 130lmW, meanwell driver Outdoor energy saving LED Lighting

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview


120W LED Roadway Lighting Fixtures

A minimal total cost of ownership was the driving force behind the development of the Pluto range. It is equipped with LEDs and various dimming and remote management options for a dramatic reduction in energy consumption. It offers a very competitive alternative to luminaires equipped with traditional light sources such as highpressure sodium lights.

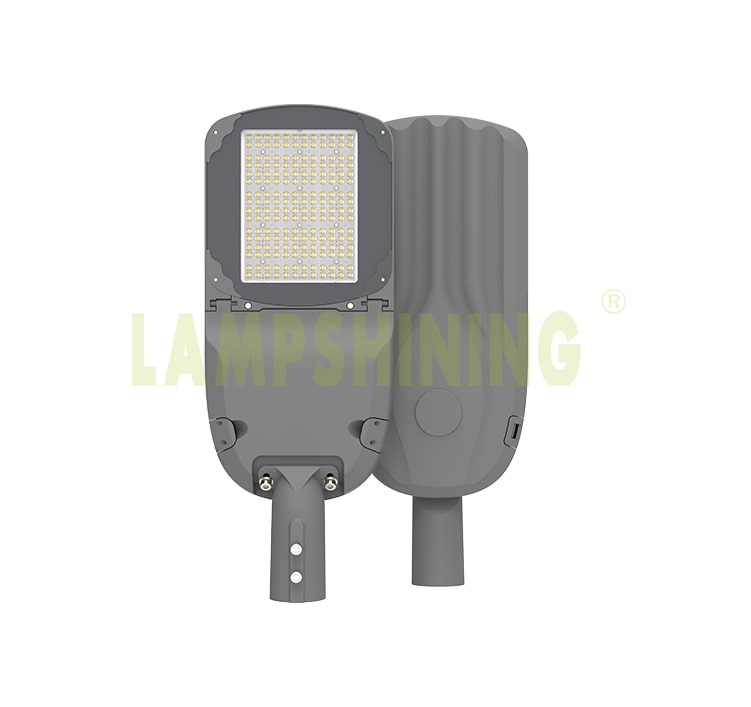

pluto series 120w led street light


Size

pluto series 120w led street lights size

Specifications

ModelLSPSL-120W-LV (XXK)
Wattage120 Watt
Lumens15600 lm(130Lm/W)18000 lm(150Lm/W)
Light SourceLumileds 3030Lumileds 5050
Input Volt100-277VAC
DriverMeanwell XLG-150-H-A
CCT3000K, 4000K, 5000K, 5700K
IP & IK RatingIP66 & IK08
Surge protection10KV
Beam AngleTypeII, TypeIII
Lifespan>50000 hours
Dimension21.77"*10.24"*9.57
Thermal ManagementNatural air cooling
Replacement300-400W HPS, MH, HQI
CertificatesDLC, ETL, ENEC, TUV, CE, CB, SAA, RoHS, LSTMT, LM79, LM80, TM21


Feature

  • Very suitable for park roads, alleys, and other small and medium-sized areas

  • Complete illumination across the entire roadway

  • No external reflectors required

  • Safe for industrial applications

  • High-performance design

  • Dramatic energy savings


1.Pluto Tiny Model LED street light is a perfect solution for secondary roads, parks gardens and pathways. It is aesthetically appealing due to its compact design and oers wide range of outdoor solutions with reduced cost of ownership. It can very well replace most of the fluorescent based luminaires (CFL/FTL) and also ensures uniform lighting distribution.


2.Continues to raise the bar on performance and lower the total cost of ownership by delivering higher value to municipalities and facility managers. The new Pluto Tiny Model LED street light with its unrivalled lumen output for roadway lighting and economic performance expands the application range replacing up to 150-250W HPSV/MH street lights.


3.The new Pluto series of street lights can be quickly removed without tools, which means maintenance and installation will be very convenient and fast.


4.Pluto Tiny Model series the perfect fit for a wide array of roadway applications helping to improve the economic value for development authorities, municipalities or owned utilities.


Waterproof and lightning proof

Highly resistant housing, IP66 waterproof and lightning protection allow PlutoLED street lights to operate in harsh environments.


120w led street lights waterproof and lightning proof


Self-cleaning

1.The smooth body would greatly diminish dust accumulation, and minimize environment impacts to the fixture's performance and lifespan.

2.The dust will be washed away automatically by the wind and rain with the unique circular arc design and smooth surface, which is good for the lamp fixture heat dissipa-tion when all the dust is gone away.


120w led street Lights easy clean up

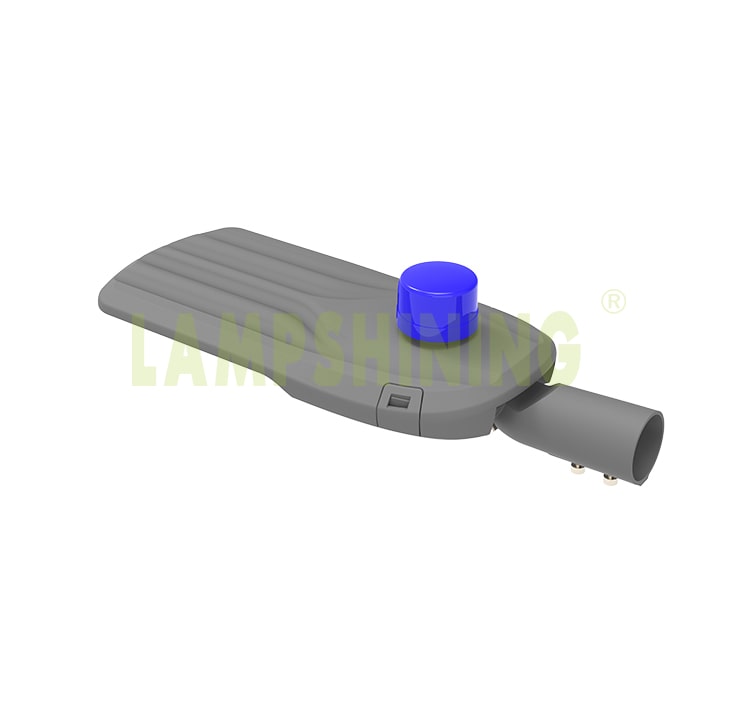

Photocell sensor

Optional light battery sensor, PlutoLED street light will automatically turn on at dusk, automatically turn off at dawn, more energy efficient and convenient.


pluto series 120w led street light with dusk to dawn sensor


Mounting optional

This Series LED Street/Area Light fixture includes simple installation with convenient abjustability.

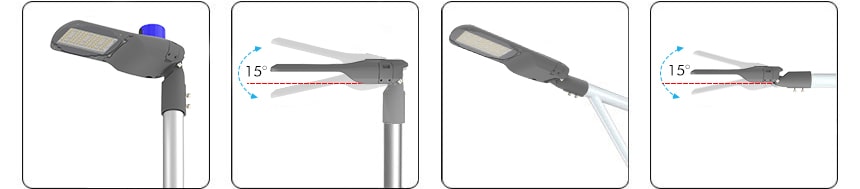

The LED Street Lights fixture can be mounted horizontally or vertically with our universal slip fit system. simply detach and rotate the slip fitter 180° to achieve the vertical orientation. Both orientation options include the ability to rotate 15degree or more.


pluto series 120w led street light horizontally or vertically mounting


60mm/42mm optional pole mounting holes.

pluto 120w led street light pole installation holes 60mm/42mm


Application

1.Residential Complex

2.Small traffic round - about

3.Lighting of secondary roads / side roads

4.Parks gardens • Security lighting


LED Street area Lights fixtures application scenarios


contact us

Beam angle

TYPE II TYPE III beam angle optional

LED Street area Lights type2 and type3 beam angle

Accessory: photocell

The Pluto Street Light Photocell integration controls the illumination of the LED street light fixture by detecting surrounding ambient light.


Photocell base comes pre-installed, twist lock cap included in package when shipped and ready to apply during assembly. Twist-Lock Photocell automatically turns lights On at Dusk and Off at Dawn.


Photocell integration controls, Photo-cell: TL1277, 120-277Volt Twist/Lock photocell

led street light photocell sensor


Accessory: surge protection device

The standard 100-277v fixture comes equipped with 10kA surge protection already integrated.

SPD surge protection devices is perfectly adapted for outdoor lighting to provide single phase protection for line/neutral, line/ground and neutral/ground in accordance with IEEEE C62.41 2002 C High,UL1449 and IEC61643-11


Accessory: mounting

The LED Street Light comes standard with a 60mm slip fitter.


Packaging size

WattSizeWeight
120W1pc/ 72*31*15cm
9.5Kg


Pack and transport LED lights
