40-150W Pluto LED Street Light - High Efficiency 180LM/W LED Roadway Lighting Fixtures

●   Watt: 40W-150W

●   Efficiency: 180Lm/W

●   Light Source: Lumileds 5050

●   Input Volt: 100-240VAC

●   IP Rating: IP66 - IK10

●   Arm Dia: 42/ 60/ 78mm

●   CCT (Color Temp): 4000K, 5000K

●   7 years warranty

●   Beam Angle: TypeII TypeIII

Inquire Now Next Product

40-150W Pluto LED Street Light - High Efficiency 180LM/W LED Roadway Lighting Fixtures

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

ModelLSPSL-40W-LV(XXK)LSPSL-60W-LV(XXK)LSPSL-80W-LV(XXK)LSPSL-100W-LV(XXK)LSPSL-120W-LV(XXK)LSPSL-150W-LV(XXK)
Watt40W60W80W100W120W
150W
Lumen7,20010,80014,40018,000
21,60027,000
Efficiency180Lm/W±3%
Chip BrandLumileds 5050
Input Volt100-240VAC
CCT4000K, 5000K
Arm Dia42/ 60/ 78mm
Size611*233*120mm676*260*119mm775*320*120mm
Weight3.1kg4.8kg
5.6kg
Meanwell Class I Driver

XLG-50-H-A

XLG-75-H-AXLG-100-H-AXLG-100-H-AXLG-150-H-AXLG-150-H-A
Moso Class I Driver
X6-042M052FX6-75M062X6-105M062X6-105M062X6-150M062X6-150M062
Moso Class II DriverLCP-040M048XCP-75M062XCP-105M062XCP-105M062XCP-150M062XCP-150M062
HousingGrey
Surge protection10KV
IP & IK RatingIP66 & IK10
Beam AngleTypeII, TypeIII
LifespanL70B20>100,000hours
Warranty7 Years Warranty
Thermal ManagementNatural air cooling
Replacement100-400W HPS, MH, HQI
CertificatesSASO, REACH, ENEC, ENEC+, TUV, CE, RoHS, CB, SAA, IECEE, LM79, LM80, LM82, TM21, IP66, IK10, Salt Spray Test, Photobiosafety Test, 3G Vibration Test, Sand Test, UV Test

40W-150W High Efficiency LED Street Lighting

A minimal total cost of ownership was the driving force behind the development of the Pluto range. It is equipped with LEDs and various dimming and remote management options for a dramatic reduction in energy consumption. It offers a very competitive alternative to luminaires equipped with traditional light sources such as highpressure sodium lights.


40-150W Pluto LED Street Light


Certification

Pluto series LED Street Light has extremely high safety and durability. The products have passed SASO, REACH, ENEC, ENEC+, TUV, CE, RoHS, CB, SAA, IECEE, LM79, LM80, LM82, TM21, IP66, IK10, Salt Spray Test, Photobiosafety Test, 3G Vibration Test, Sand Test, UV Test certification.

SASO, REACH, ENEC, ENEC+, TUV, CE, RoHS, CB, SAA, IECEE, LM79, LM80, LM82, TM21, IP66, IK10, Salt Spray Test, Photobiosafety Test, 3G Vibration Test, Sand Test, UV Test certification icon

Size

pluto 40w-60w led street light size


pluto 80w-100w led street light size


pluto 120w/150w led street light size

Details

pluto led street light details

driver class I and Class II

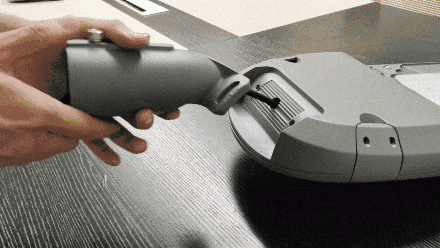

Open Tool-free

40-150W Pluto LED Street Light - High Efficiency 180LM/W LED Roadway Lighting Fixtures

The Pluto street light adopts a more convenient structure, which can be disassembled and maintained without tools.










Waterproof and lightning proof

Highly resistant housing, IP66 waterproof and lightning protection allow PlutoLED street lights to operate in harsh environments.


pluto 40w led street light waterproof and lightning proof


Self-cleaning

1.The smooth body would greatly diminish dust accumulation, and minimize environment impacts to the fixture's performance and lifespan.

2.The dust will be washed away automatically by the wind and rain with the unique circular arc design and smooth surface, which is good for the lamp fixture heat dissipa-tion when all the dust is gone away.


40w led street area light fixtures self cleaning function


Photocell sensor

Optional Dusk to dawn sensor, PlutoLED street light will automatically turn on at dusk, automatically turn off at dawn, more energy efficient and convenient.


40w led street light with dusk to dawn sensor


Pole Installation Hole

78mm/60mm/42mm optional pole mounting holes.

78mm/60mm/42mm optional pole mounting holes


Mounting optional

40-150W Pluto LED Street Light - High Efficiency 180LM/W LED Roadway Lighting Fixtures

This Series LED Street/Area Light fixture includes simple installation with convenient abjustability.

The LED Street Lights fixture can be mounted horizontally or vertically with our universal slip fit system. simply detach and rotate the slip fitter 180° to achieve the vertical orientation. Both orientation options include the ability to rotate 15degree or more.






40w led street light horizontally or vertically mounting


Photometrics

TYPE II TYPE III beam angle optional

LED Street area Lights type2 and type3 beam angle

Certification Testing

Pluto led street lights will undergo rigorous various tests before they leave the factory to ensure the quality of the lamps.

Including: 1.3G Vibration test 2.Salt Spray test 3. Waterproof test

pluto led street light Certification Testing

Application

1.Residential Complex

2.Small traffic round - about

3.Lighting of secondary roads / side roads

4.Parks gardens • Security lighting


LED Street area Lights fixtures application scenarios


contact us

Beam angle

TYPE II TYPE III beam angle optional

LED Street area Lights type2 and type3 beam angle

Accessory: photocell

The Pluto Street Light Photocell integration controls the illumination of the LED street light fixture by detecting surrounding ambient light.


Photocell base comes pre-installed, twist lock cap included in package when shipped and ready to apply during assembly. Twist-Lock Photocell automatically turns lights On at Dusk and Off at Dawn.


Photocell integration controls, Photo-cell: TL1277, 120-277Volt Twist/Lock photocell

led street light photocell sensor


Accessory: surge protection device

The standard 100-277v fixture comes equipped with 10kA surge protection already integrated.

SPD surge protection devices is perfectly adapted for outdoor lighting to provide single phase protection for line/neutral, line/ground and neutral/ground in accordance with IEEEE C62.41 2002 C High,UL1449 and IEC61643-11



Accessory: mounting

The LED Street Light comes standard with a 60mm slip fitter.



Packaging size

WattSizeWeight
40W/ 60W1pc/ 67*28*15cm8.5Kg
80W/ 100W1pc/ 72*31*15cm9.5kg
120W/ 150W1pc/ 84*38*15cm11kg


Pack and transport LED lights
