100W LED Flood Light Fixtures 12000Lm Waterproof SAA Ctick CE RoHS

100 Watt Ultra Slim LED Floodlight - 12000Lm - IP65 waterproof - 5 years warranty - PF>0.9 -SAA Ctick CE RoHS listed - Replacement 300W HID Fixtures.

  • Data Sheets
  • Features/Benefits
  • Options/Accessories
  • Lighing Layout


Main Feature

  • 5 years warranty

  • Original Philips SMD 3030 which up to 100Lm/W to 120Lm/W.

  • With the best quality Internal Driver and Meanwell Driver.

  • IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion.

  • Anti 17 level wind,270 degrees adjustable angle.

  • Tiny package and lighter,lower freight cost,more competitive in the market.

  • Avaialble for warehouse,tunnel lighting,advertisement ,gas station and factory lighting etc.

  • Wide voltage AC100-300V,High efficiency constant current drives,Efficiency of power supply is more than 90%.

Dimension


Specifications

ModelLSSFL-100W
Wattage100W
Luminous Flux9600 Lm
Light SourcePhilips SMD 3030
DimensionL*W*H : 295mm*402.32mm*53.5mm
Equivalent 300W metal halide / HID lamp fixtures Equivalent
CCT3000K/4000-4500K/5000-5700K/6000-6500K
Input Voltage100-300VAC,50/60Hz
Power Factor>0.95
Cap TypeBase Options:US,Europe,UK,Australia plug
optical lens120 degree
ConstructionRetrofit fin aluminum+stainless steel
Beam Angle120 degrees
IP RatingIP65
CRI>80
Working Tempe / Humidity-45 to + 50 Deg C / @Ta=25 Deg C
Warranty5 year Warranty
Rated Lifespan50,000+ hours
CertifiedSAA Ctick CE RoHS

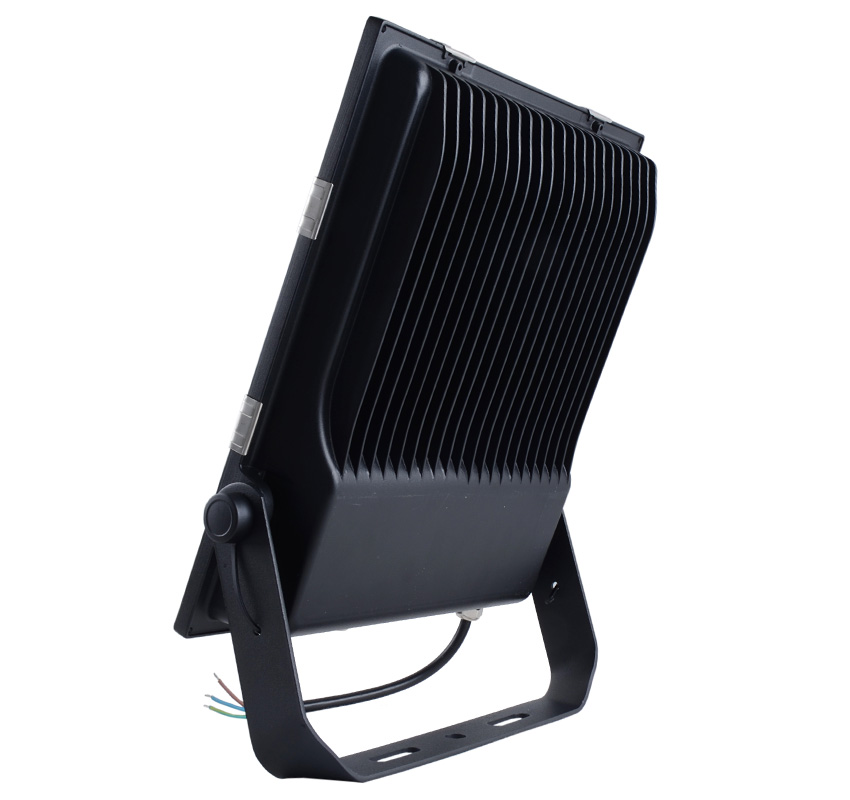

Image Show


Application




  • Garden and Landscape Lighting

  • Tree Uplighting

  • Statue and Monument Lighting

  • Architectural Wall Washing Facade Lighting

  • Flagpole Lighting

  • Large Sign Illumination


1) This 100 watt LED flood light fixtures Ultra Slim Style emits a wide 120 degrees beam angle of natural white illumination for landscape lighting, parking lot lighting, tree uplighting, flagpole lighting, and architectural wall washing.

2) Using 100 Philips 3030 LEDs up to 100Lm/W to 120Lm/W, the powerful flood light emits 12000 lumens for ample outdoor illumination. Consuming only 100 watts of power, this energy-efficient LED flood light fixture replaces 300 watt metal-halide (MH) lights and 450 watt incandescent fixtures with comparable output.

3) The weatherproof LED fixture is constructed of heavy-duty die cast aluminum with an integral heat sink and a tempered glass lens. 270 degrees An adjustable mounting bracket allows you to direct illumination where it's needed,IP65 Weatherproof Rating.

4) The LED flood light operates within a wide 100-300V AC range and is designed to last 50,000 hours-5 times longer than HID fixtures.With Garden and Landscape Lighting, Tree Uplighting,Statue and Monument Lighting,Architectural Wall Washing Facade Lighting,Flagpole Lighting,Tunnel Lighting,Large Sign lighting.


Main Feature


led flood light accessories


Carton:

100W: 1pc/50*45*15cm  GW: 5.6Kg   6pcs/53*43*91cm   GW:36.8Kg
