20W LED Flood Light Fixtures 2600Lm Waterproof CE RoHS SAA Ctick
  • 20W LED Flood Light Fixtures 2600Lm Waterproof CE RoHS SAA Ctick
  • 20W LED Flood Light Fixtures 2600Lm Waterproof CE RoHS SAA Ctick
  • 20W LED Flood Light Fixtures 2600Lm Waterproof CE RoHS SAA Ctick
  • 20W LED Flood Light Fixtures 2600Lm Waterproof CE RoHS SAA Ctick
  • 20W LED Flood Light Fixtures 2600Lm Waterproof CE RoHS SAA Ctick
20W LED Flood Light Fixtures 2600Lm Waterproof CE RoHS SAA Ctick20W LED Flood Light Fixtures 2600Lm Waterproof CE RoHS SAA Ctick20W LED Flood Light Fixtures 2600Lm Waterproof CE RoHS SAA Ctick20W LED Flood Light Fixtures 2600Lm Waterproof CE RoHS SAA Ctick20W LED Flood Light Fixtures 2600Lm Waterproof CE RoHS SAA Ctick

20W LED Flood Light Fixtures 2600Lm Waterproof CE RoHS SAA Ctick

●   Watt: 20W

●   Lumens: 2,000

●   Light Source: Lumileds 3030

●   Input Volt: 100-277VAC

●   IP Rating: IP65 - IK08

●   Rotatable Bracket

●   Size: 216.5*152*40mm

●   Lamp Weight: 0.9kg

●   CCT (Color Temp): 3000-6000K

●   5 years warranty

●   Beam Angle: 120 degree

Inquire Now Next Product

20W LED Flood Light Fixtures 2600Lm Waterproof CE RoHS SAA Ctick

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

ModelLSSFL-20W
Watt20W
Lumen2,000
Efficiency100Lm/W±3%
Chip BrandLumileds 3030
Input Volt100-240VAC
CCT3000-6000K
Size216.5*152*40mm
Weight0.9kg
IP & IK RatingIP65 & IK08
HousingBlack
Power Factor>0.95
Surge protection6KV
Cap TypeBase Options:US,Europe,UK,Australia plug
ConstructionRetrofit fin aluminum+stainless steel
Beam Angle120 degrees
CRI>80
Working Tempe / Humidity-45 to + 50 Deg C / @Ta=25 Deg C
Warranty5 year Warranty
Rated Lifespan50,000+ hours
CertifiedETL DLC TUV CE CB IECEE SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved

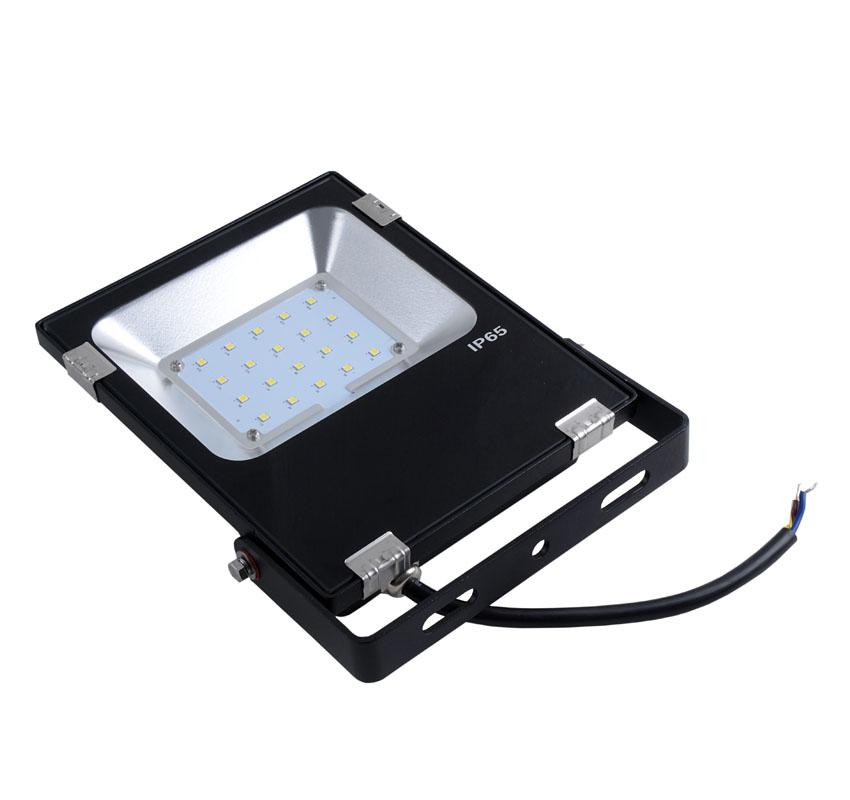

20W Ultra Slim LED Floodlight

10-200w led flood lights


Size

20w led flood light dimension

Main Feature

  • 5 years warranty

  • Original Philips SMD 3030 which up to 100Lm/W to 120Lm/W.

  • With the best quality Internal Driver and Meanwell Driver.

  • IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion.

  • Anti 17 level wind,270 degrees adjustable angle.

  • Tiny package and lighter,lower freight cost,more competitive in the market.

  • Avaialble for warehouse,tunnel lighting,advertisement ,gas station and factory lighting etc.

  • Wide voltage AC100-300V,High efficiency constant current drives,Efficiency of power supply is more than 90%.


Image Show

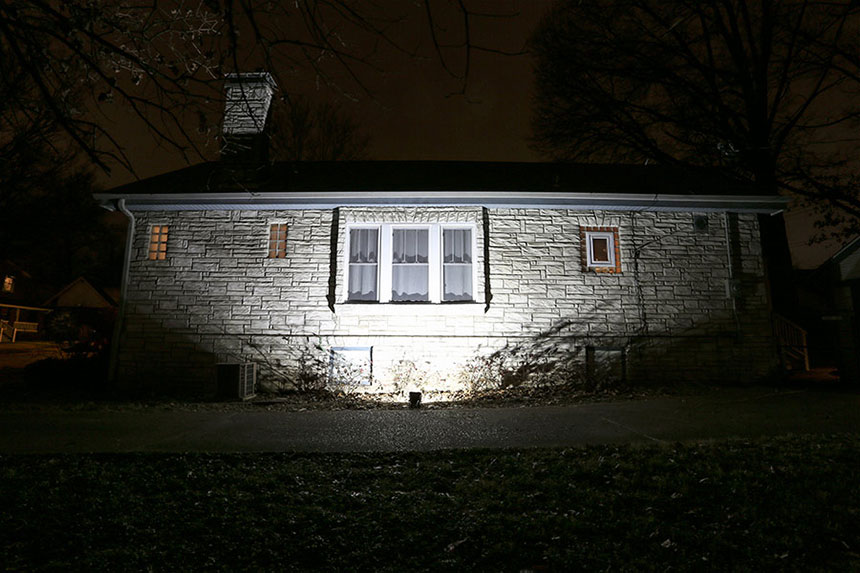

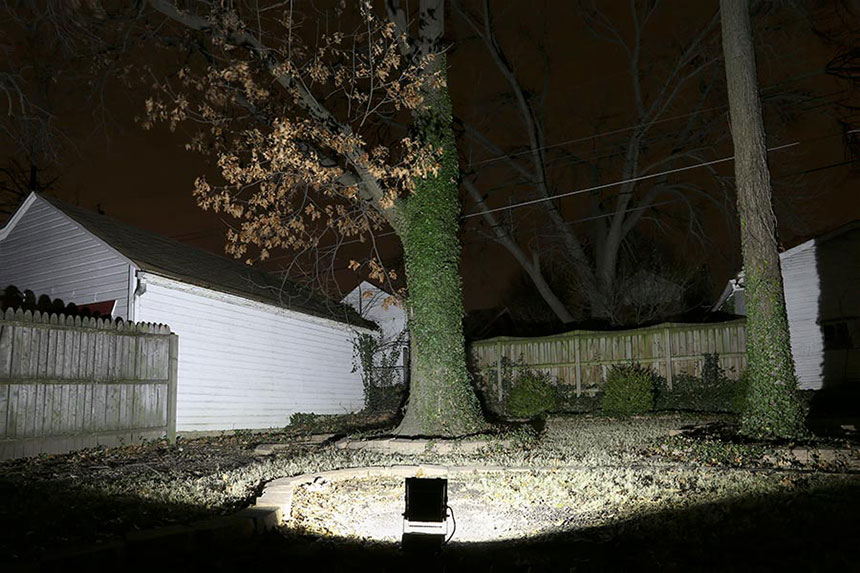

20w led flood light show

1) This 20 watt LED flood light fixtures Ultra Slim Style emits a wide 120 degrees beam angle of natural white illumination for landscape lighting, parking lot lighting, tree uplighting, flagpole lighting, and architectural wall washing.

2) Using 20 Philips 3030 LEDs up to 100Lm/W to 120Lm/W, the powerful flood light emits 2600 lumens for ample outdoor illumination. Consuming only 10 watts of power, this energy-efficient LED flood light fixture replaces 75 watt metal-halide (MH) lights and 120 watt incandescent fixtures with comparable output.

3) The weatherproof LED fixture is constructed of heavy-duty die cast aluminum with an integral heat sink and a tempered glass lens. 270 degrees An adjustable mounting bracket allows you to direct illumination where it's needed,IP65 Weatherproof Rating.

4) The LED flood light operates within a wide 100-300V AC range and is designed to last 50,000 hours-5 times longer than HID fixtures.With Garden and Landscape Lighting, Tree Uplighting,Statue and Monument Lighting,Architectural Wall Washing Facade Lighting,Flagpole Lighting,Tunnel Lighting,Large Sign lighting.


Main Feature


led floodlight feature


Application


ip65 smd led flood light applicationled flood light applicationip65 smd led flood light application

  • Garden and Landscape Lighting

  • Tree Uplighting

  • Statue and Monument Lighting

  • Architectural Wall Washing Facade Lighting

  • Flagpole Lighting

  • Large Sign Illumination

Beam angle

120degree

30W LED Flood Light Fixtures 3900Lm Waterproof CE RoHS SAA Ctick

led flood light accessories

Package details

20W: 20pc/CTN

Carton size: 54*40*28cm GW: 18.0Kg

20w led floodlight packaging
