70W Ultra Slim LED Floodlight - 9100Lm - IP65 waterproof - 5 years warranty - PF>0.9 - CE RoHS SAA Ctick listed - Replacement 200W HID Fixtures.


Inquire Now Next Product

70W LED Flood Light Fixtures 9100Lm Waterproof CE RoHS SAA Ctick

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Overview


70W Ultra Slim LED Floodlight

10-200w led flood lights


Size

70w led flood light dimension

Specifications

ModelLSSFL-70W
Wattage70W
Luminous Flux9100 Lm
Light SourcePhilips SMD 3030
DimensionL*W*H : 245mm*354.32mm*49.5mm
Equivalent 200W metal halide / HID lamp fixtures Equivalent
CCT3000K/4000-4500K/5000-5700K/6000-6500K
Input Voltage100-300VAC,50/60Hz
Power Factor>0.95
Cap TypeBase Options:US,Europe,UK,Australia plug
optical lens120 degree
ConstructionRetrofit fin aluminum+stainless steel
Beam Angle120°
IP RatingIP65
CRI>80
Working Tempe / Humidity-45 to + 50 Deg C / @Ta=25 Deg C
Warranty5 year Warranty
Rated Lifespan50,000+ hours
CertifiedCE RoHS SAA Ctick


Main Feature

  • 5 years warranty

  • Original Philips SMD 3030 which up to 100Lm/W to 120Lm/W.

  • With the best quality Internal Driver and Meanwell Driver.

  • IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion.

  • Anti 17 level wind,270 degrees adjustable angle.

  • Tiny package and lighter,lower freight cost,more competitive in the market.

  • Avaialble for warehouse,tunnel lighting,advertisement ,gas station and factory lighting etc.

  • Wide voltage AC100-300V,High efficiency constant current drives,Efficiency of power supply is more than 90%.


Image Show

70W led flood light show


1) This 70 watt LED flood light fixtures Ultra Slim Style emits a wide 120 degrees beam angle of natural white illumination for landscape lighting, parking lot lighting, tree uplighting, flagpole lighting, and architectural wall washing.

2) Using 70 Philips 3030 LEDs up to 100Lm/W to 120Lm/W, the powerful flood light emits 9100 lumens for ample outdoor illumination. Consuming only 70 watts of power, this energy-efficient LED flood light fixture replaces 200 watt metal-halide (MH) lights and 350 watt incandescent fixtures with comparable output.

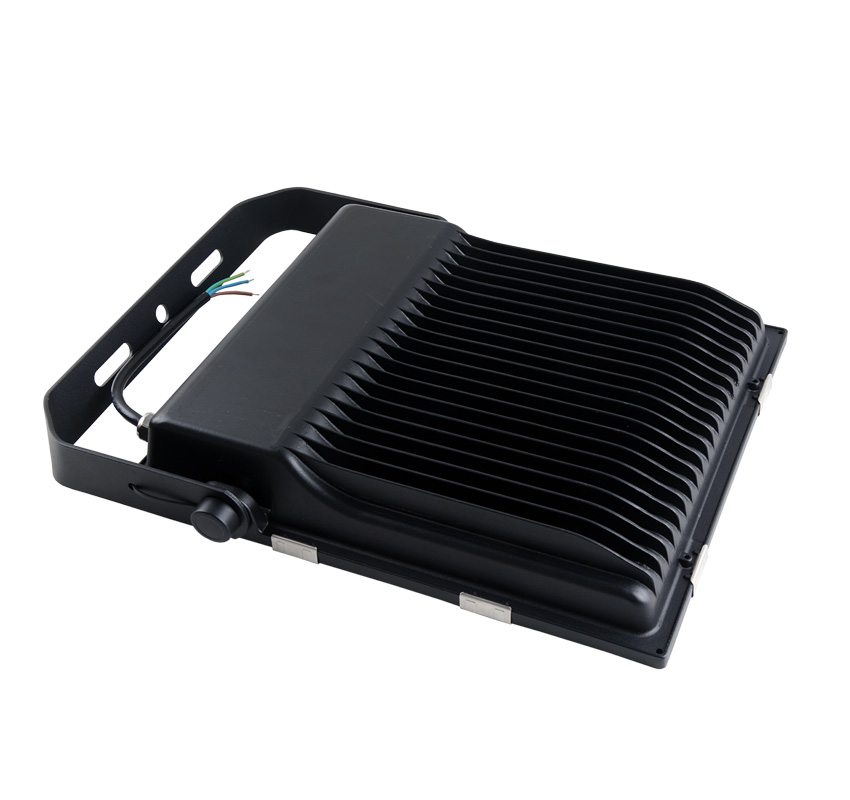

3) The weatherproof LED fixture is constructed of heavy-duty die cast aluminum with an integral heat sink and a tempered glass lens. 270 degrees An adjustable mounting bracket allows you to direct illumination where it's needed,IP65 Weatherproof Rating.

4) The LED flood light operates within a wide 100-300V AC range and is designed to last 50,000 hours-5 times longer than HID fixtures.With Garden and Landscape Lighting, Tree Uplighting,Statue and Monument Lighting,Architectural Wall Washing Facade Lighting,Flagpole Lighting,Tunnel Lighting,Large Sign lighting.


Main Feature

led floodlight feature


Application


ip65 smd led flood light applicationled flood light applicationip65 smd led flood light application

  • Garden and Landscape Lighting

  • Tree Uplighting

  • Statue and Monument Lighting

  • Architectural Wall Washing Facade Lighting

  • Flagpole Lighting

  • Large Sign Illumination

Beam angle

slim led flood light beam angle

led flood light accessories

Package details

70W: 1pc/CTN

Carton size: 46*36*15cm

GW: 4.6Kg
