10W LED Flood Light Fixtures 1300Lm Waterproof CE RoHS SAA Ctick
  • 10W LED Flood Light Fixtures 1300Lm Waterproof CE RoHS SAA Ctick
  • 10W LED Flood Light Fixtures 1300Lm Waterproof CE RoHS SAA Ctick
  • 10W LED Flood Light Fixtures 1300Lm Waterproof CE RoHS SAA Ctick
  • 10W LED Flood Light Fixtures 1300Lm Waterproof CE RoHS SAA Ctick
  • 10W LED Flood Light Fixtures 1300Lm Waterproof CE RoHS SAA Ctick
  • 10W LED Flood Light Fixtures 1300Lm Waterproof CE RoHS SAA Ctick
10W LED Flood Light Fixtures 1300Lm Waterproof CE RoHS SAA Ctick10W LED Flood Light Fixtures 1300Lm Waterproof CE RoHS SAA Ctick10W LED Flood Light Fixtures 1300Lm Waterproof CE RoHS SAA Ctick10W LED Flood Light Fixtures 1300Lm Waterproof CE RoHS SAA Ctick10W LED Flood Light Fixtures 1300Lm Waterproof CE RoHS SAA Ctick10W LED Flood Light Fixtures 1300Lm Waterproof CE RoHS SAA Ctick

10W LED Flood Light Fixtures 1300Lm Waterproof CE RoHS SAA Ctick

●   Watt: 10W

●   Lumens: 1,000

●   Light Source: Lumileds 3030

●   Input Volt: 100-277VAC

●   IP Rating: IP65 - IK08

●   Rotatable Bracket

●   Size: 166*107*32mm

●   Lamp Weight: 0.47kg

●   CCT (Color Temp): 3000-6000K

●   5 years warranty

●   Beam Angle: 120 degree

Inquire Now

10W LED Flood Light Fixtures 1300Lm Waterproof CE RoHS SAA Ctick

Name:

Tel:

E-mail:

Country:

CAPTCHA:

Submit the information to obtain product spec sheet,Please make sure that your email address is absolutely correct!

Specification Sheet
  • Data Sheets
  • Beam Angle
  • Options/Accessories
  • Package details

Specifications

ModelLSSFL-10W
Watt10W
Lumen1,000
Efficiency100Lm/W±3%
Chip BrandLumileds 3030
Input Volt100-240VAC
CCT3000-6000K
Size166*107*32mm
Weight0.47kg
IP & IK RatingIP65 & IK08
HousingBlack
Power Factor>0.95
Surge protection6KV
Cap TypeBase Options:US,Europe,UK,Australia plug
ConstructionRetrofit fin aluminum+stainless steel
Beam Angle120 degrees
CRI>80
Working Tempe / Humidity-45 to + 50 Deg C / @Ta=25 Deg C
Warranty5 year Warranty
Rated Lifespan50,000+ hours
CertifiedETL DLC TUV CE CB IECEE SAA RoHS LM79 LM80 TM21 IK08 Salt Spray test approved


10W Ultra Slim LED Floodlight

10-200w led flood light


Size

10w led flood light dimension

Main Feature

  • 5 years warranty

  • Original Lumileds 3030 which up to 100Lm/W.

  • With the best quality Internal Driver and Meanwell Driver.

  • IP65 waterproof ,dust-proof ,explosion-proof and anti-corrosion.

  • Anti 17 level wind,270 degrees  adjustable angle.

  • Tiny package and lighter,lower freight cost,more competitive in the market.

  • Avaialble for warehouse,tunnel lighting,advertisement ,gas station and factory lighting etc.

  • Wide voltage AC100-300V,High efficiency constant current drives,Efficiency of power supply is more than 90%.


Image Show

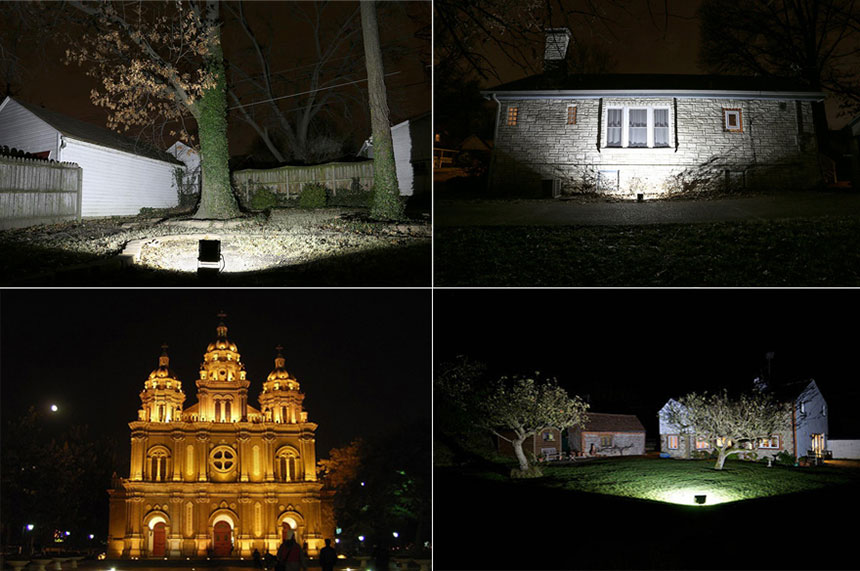

10W led flood light show

1) This 10 watt LED flood light fixtures Ultra Slim Style emits a wide 120 degrees beam angle of natural white illumination for landscape lighting, parking lot lighting, tree uplighting, flagpole lighting, and architectural wall washing.

2) Using 10 Philips 3030 LEDs up to 100Lm/W to 120Lm/W, the powerful flood light emits 1200 lumens for ample outdoor illumination. Consuming only 10 watts of power, this energy-efficient LED flood light fixture replaces 50 watt metal-halide (MH) lights and 100 watt incandescent fixtures with comparable output.

3) The weatherproof LED fixture is constructed of heavy-duty die cast aluminum with an integral heat sink and a tempered glass lens. 270 degrees An adjustable mounting bracket allows you to direct illumination where it's needed,IP65 Weatherproof Rating.

4) The LED flood light operates within a wide 100-300V AC range and is designed to last 50,000 hours-5 times longer than HID fixtures.With Garden and Landscape Lighting, Tree Uplighting,Statue and Monument Lighting,Architectural Wall Washing Facade Lighting,Flagpole Lighting,Tunnel Lighting,Large Sign lighting.


Main Feature


led floodlight feature


Application


ip65 smd led flood light applicationled flood light applicationip65 smd led flood light application

  • Garden and Landscape Lighting

  • Tree Uplighting

  • Statue and Monument Lighting

  • Architectural Wall Washing Facade Lighting

  • Flagpole Lighting

  • Large Sign Illumination

Beam angle

120degree

30W LED Flood Light Fixtures 3900Lm Waterproof CE RoHS SAA Ctick

led flood light accessories

Package details

10W: 36pc/CTN

Carton size: 44*45*28cm GW: 17.2Kg

10w led floodlight packaging
